Introduction

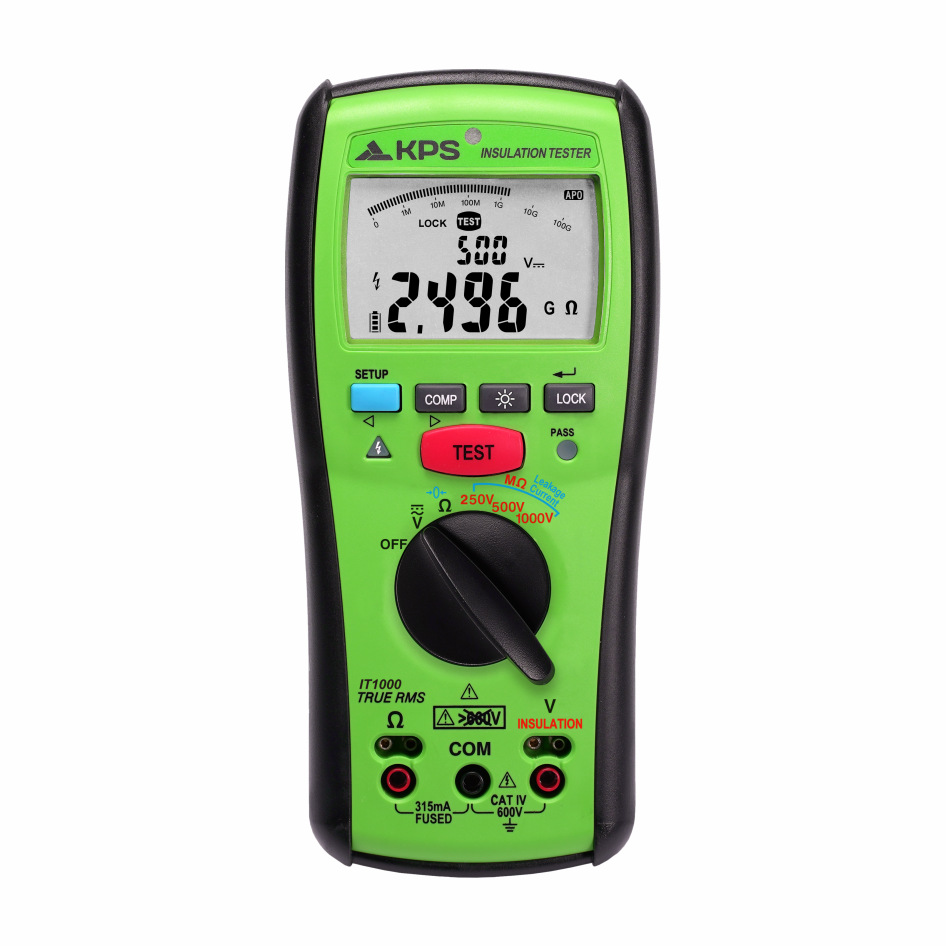

The IT1000 is a portable and easy-to-use insulation tester designed to assess insulation quality and ground continuity in electrical installations. Its backlit LED display with a bar graph allows for clear and quick readings of results.
It offers different insulation test voltage levels, AC/DC voltage measurement, and a comparison function (Pass/Fail) to easily determine if a measurement meets the required standards. Additionally, it features LED indicators and acoustic signals, making it easier to interpret results.
Designed for electrical professionals, the KPS IT1000 is a reliable and durable tool, ideal for fieldwork and electrical maintenance.

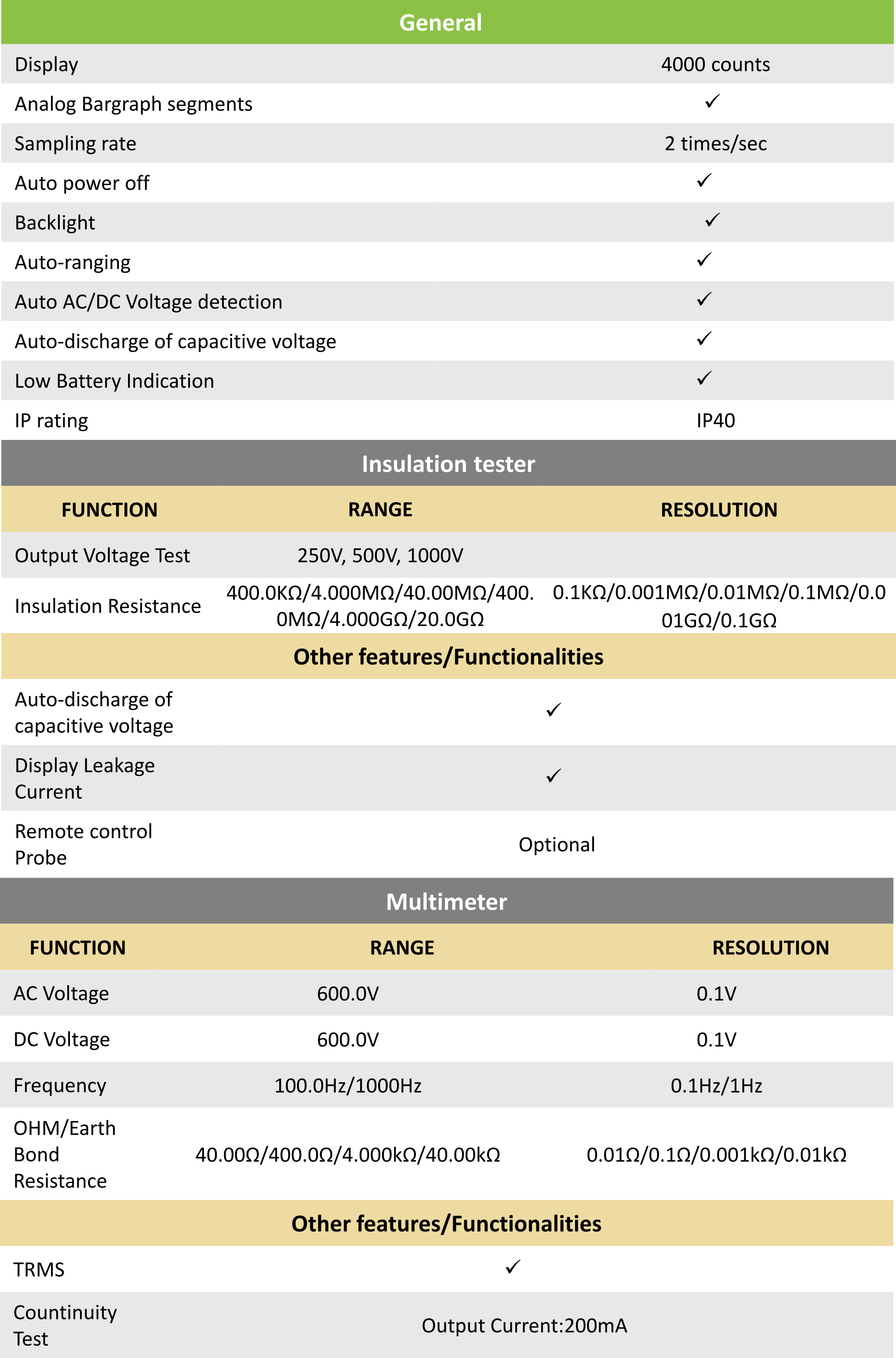

Features
Large backlit white LED display with bar graph and dual reading display
Insulation testing
Test voltages: 250V, 500V, 1000V
Resistance measurement up to: 20GΩ
Ground connection resistance (continuity)
Measurement range: 0.01Ω to 40kΩ
Output current: 200 mA
AC/DC voltage measurement (TRMS) up to 600V
COMPARE function (Pass/Fail)
Available for insulation testing and ground connection resistance (fixed at 2Ω)
Two-color LED indicator (green/red) and sound signals (continuous beep/two beeps)
IP40 rating
Includes test leads, alligator clips, and a carrying case with a built-in magnet (optional remote probe available)
