Introduction

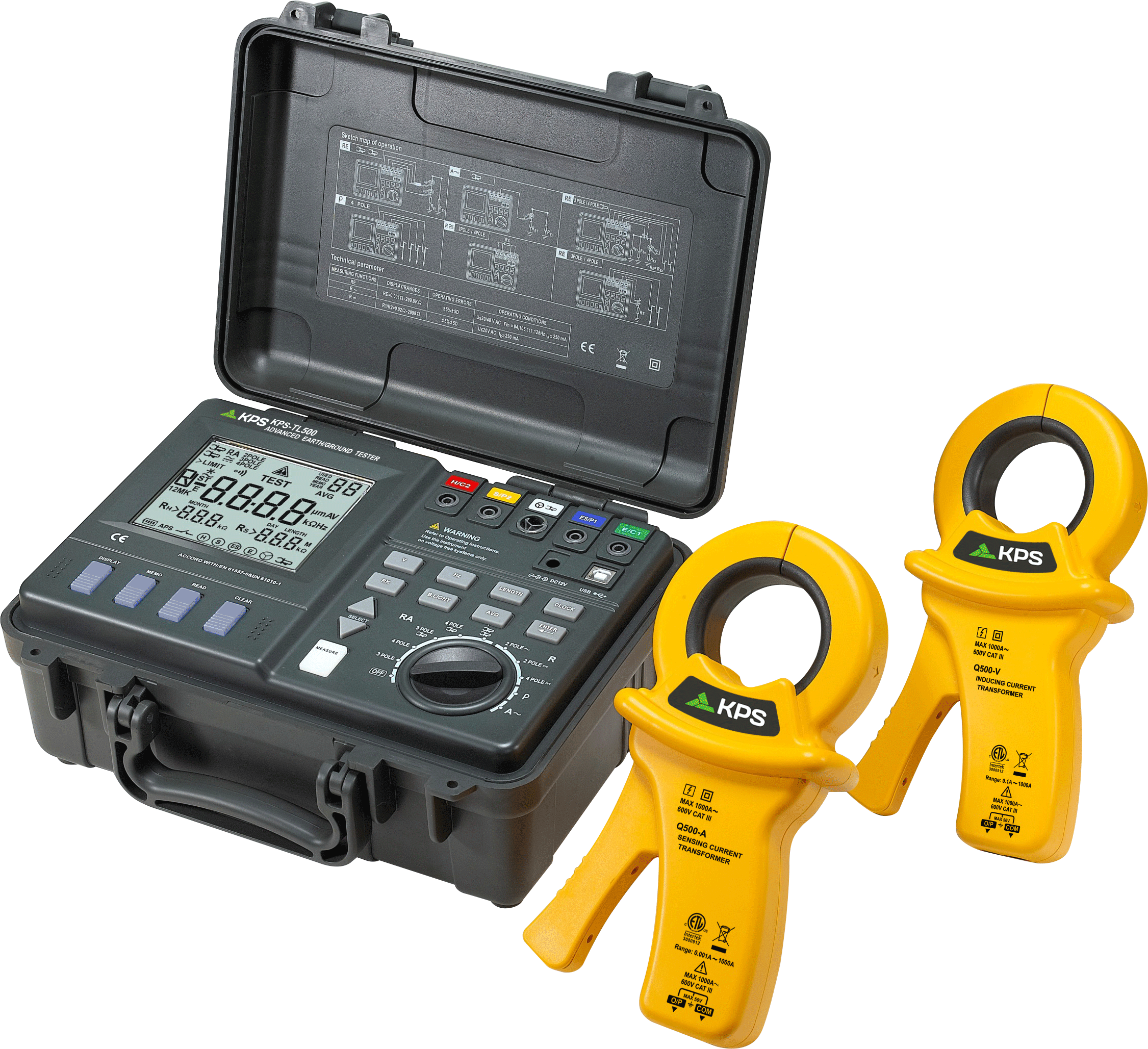

The KPS TL500 is an advanced earth resistance tester designed for comprehensive testing and evaluation of earthing systems across a wide range of electrical and industrial applications. Combining multiple measurement methods in one versatile instrument, it is ideal for testing transformer earthing systems, lightning protection installations, high-voltage transmission towers and telecommunications infrastructure.

Supporting 2-pole, 3-pole and 4-pole testing methods, including selective and two-clamp measurements, the TL500 enables accurate assessment of earth resistance across a variety of earthing configurations. Its selective measurement function allows individual earth connections to be tested within interconnected earthing systems without disconnecting them, while the two-clamp method enables measurements without auxiliary earth electrodes.

With additional soil resistivity testing, AC and DC resistance measurement, and interference monitoring, the TL500 provides a comprehensive solution for professional electrical engineers, maintenance technicians and earthing system specialists. Automatic Frequency Control (AFC) helps minimise the effects of electrical interference, while internal data storage and USB connectivity allow measurement results to be transferred to a PC for analysis and reporting.

Introduction

The KPS TL500 is an advanced earth resistance tester designed for comprehensive testing and evaluation of earthing systems across a wide range of electrical and industrial applications. Combining multiple measurement methods in one versatile instrument, it is ideal for testing transformer earthing systems, lightning protection installations, high-voltage transmission towers and telecommunications infrastructure.

Supporting 2-pole, 3-pole and 4-pole testing methods, including selective and two-clamp measurements, the TL500 enables accurate assessment of earth resistance across a variety of earthing configurations. Its selective measurement function allows individual earth connections to be tested within interconnected earthing systems without disconnecting them, while the two-clamp method enables measurements without auxiliary earth electrodes.

With additional soil resistivity testing, AC and DC resistance measurement, and interference monitoring, the TL500 provides a comprehensive solution for professional electrical engineers, maintenance technicians and earthing system specialists. Automatic Frequency Control (AFC) helps minimise the effects of electrical interference, while internal data storage and USB connectivity allow measurement results to be transferred to a PC for analysis and reporting.

Key Features

  • 2-pole, 3-pole and 4-pole earth resistance testing
  • Selective earth resistance testing using a current clamp
  • Two-clamp testing without auxiliary earth electrodes
  • Soil resistivity measurement using the 4-pole method
  • 2-pole AC and 2-pole/4-pole DC resistance measurement
  • Automatic Frequency Control (AFC) to minimise electrical interference
  • Interference voltage, current and frequency measurement
  • Test lead resistance compensation (RK)
  • Stores up to 100 test results with USB connectivity for PC data analysis
  • Digital/analogue display with LCD backlight
