Introduction

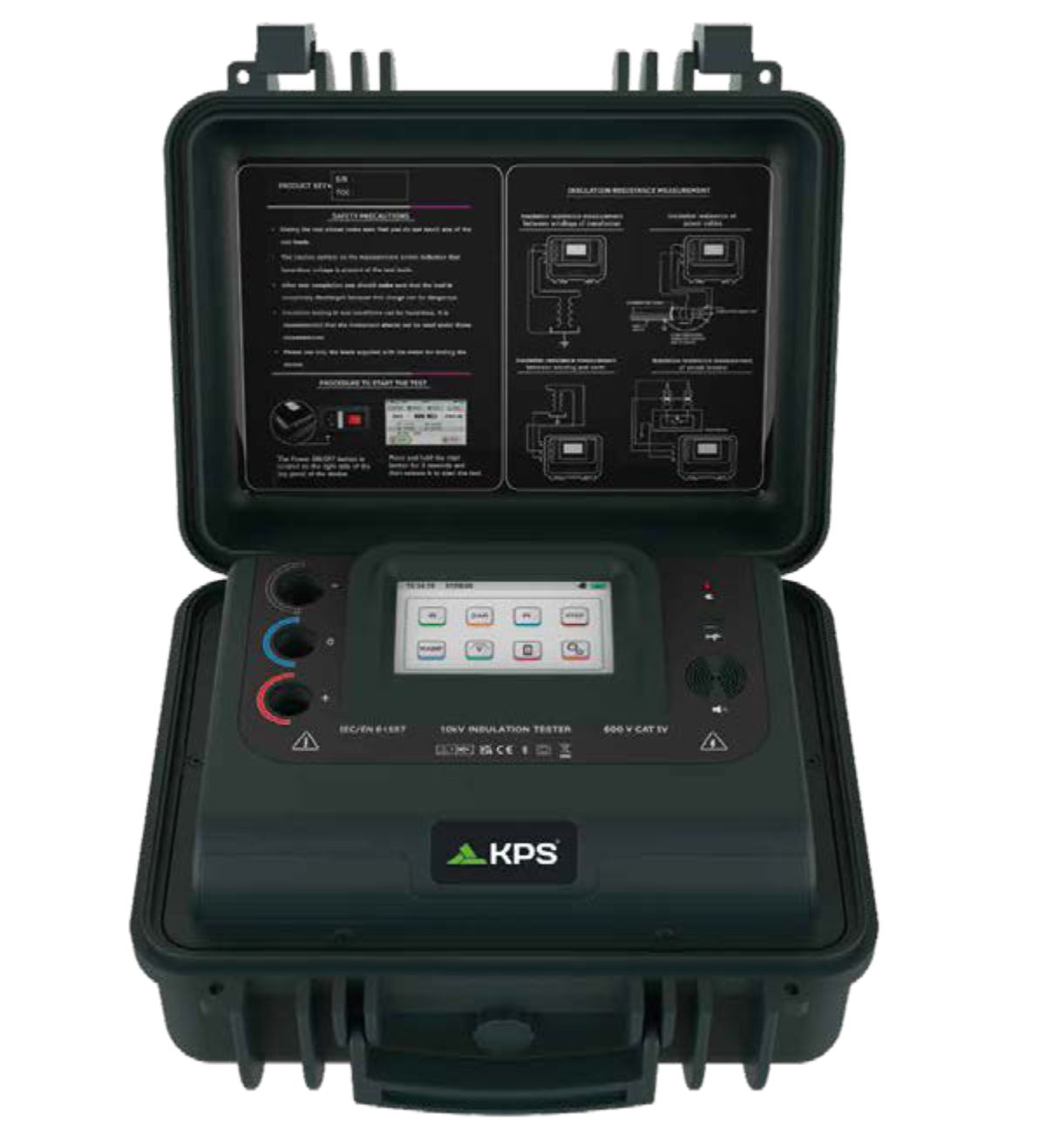

Digital Insulation tester INSUCHECK10000 is designed to perform at power utilities where induction field is very high. Its high noise immunity and user selectable digital filters makes it most robust and reliable instrument with user selectable test voltages. Also it is used for testing the electrical insulation of cables, motors, generators, transformers, etc. at power generation plants, utilities, distribution.
Its advance features like Bluetooth connectivity, audio read out, touch screen TFT color display makes it never before userfriendly. It can store the data on its inbuilt memory with real time stamp.
Data can be transferred to computer or mobile phone memory for future analysispurpose. It performs tests like Polarization Index, Dielectric AbsorptionRatio, Dielectric Discharge, Ramp Diagnostic Test, Step voltage test.
Selectable short circuit current 1.2mA, 3mA and 6mA
User selectable digitalfilters
Noise Rejection 8 mA
Operates on rechargeable Li-ion battery and Mains aswell
Bluetooth connectivity for data logging
Touch screen TFT colour display
AudioRead-out
Test voltage can be selected in steps of 10V from 100V to 1000V & in steps of 25V from 1000V to 10000V
Measurement of DC and AC voltages from 20V ~ 600V
Three programmable timers
Insulation leakage current measurement
PI, DAR, DD, Step voltage & Ramp Test
