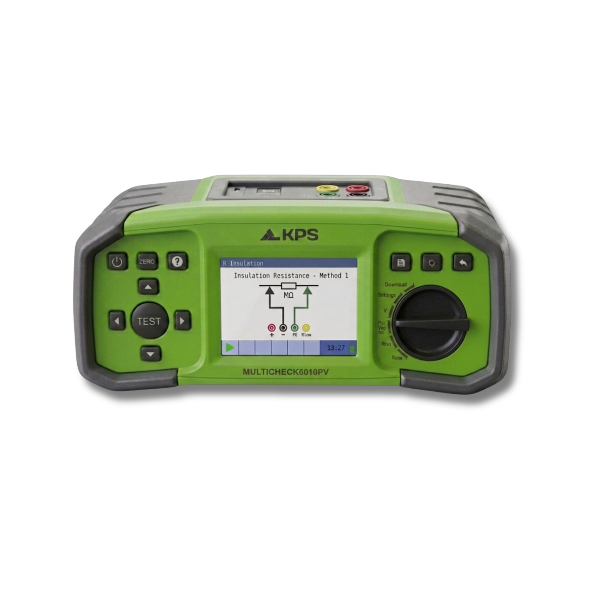

KPS MULTICHECK6010PV: Multifunction photovoltaic tester

The KPS MULTICHECK6010PV is a multifunction tester for photovoltaic installations, designed to verify electrical safety in accordance with the EN 62446 standard. Its all-in-one design allows the main electrical tests on a solar installation to be carried out quickly, conveniently and safely.

Equipped with a 3.5-inch colour TFT display, the MULTICHECK6010PV enables essential measurements to be carried out for the commissioning and verification of photovoltaic installations, including continuity, insulation resistance, polarity, open-circuit voltage (Voc) and short-circuit current (Isc).

Furthermore, it allows performance values to be corrected to standard test conditions (STC) and connects wirelessly to the IRD6010PV remote module, which measures the irradiance and temperature of the photovoltaic module (optional accessory).

Its internal memory, which can store up to 1,000 readings, and the PC software facilitate the management of measurements and the preparation of test certificates, helping to document the results of the checks.

The IRD6010PV remote irradiance and temperature module is available as an optional accessory.

KPS MULTICHECK6010PV: Multifunction photovoltaic tester

The KPS MULTICHECK6010PV is a multifunction tester for photovoltaic installations, designed to verify electrical safety in accordance with the EN 62446 standard. Its all-in-one design allows the main electrical tests on a solar installation to be carried out quickly, conveniently and safely.

Equipped with a 3.5-inch colour TFT display, the MULTICHECK6010PV enables essential measurements to be carried out for the commissioning and verification of photovoltaic installations, including continuity, insulation resistance, polarity, open-circuit voltage (Voc) and short-circuit current (Isc).

Furthermore, it allows performance values to be corrected to standard test conditions (STC) and connects wirelessly to the IRD6010PV remote module, which measures the irradiance and temperature of the photovoltaic module (optional accessory).

Its internal memory, which can store up to 1,000 readings, and the PC software facilitate the management of measurements and the preparation of test certificates, helping to document the results of the checks.

The IRD6010PV remote irradiance and temperature module is available as an optional accessory.

Key features

  • Multifunction solar tester: combines the main electrical tests required for verifying photovoltaic installations.
  • Regulatory compliance: designed to verify the electrical safety of photovoltaic installations in accordance with EN 62446.
  • 3.5-inch colour TFT display: facilitates the viewing of measurements.
  • Continuity and low resistance test: allows the electrical continuity of conductors to be checked.
  • Insulation resistance measurement: includes measurement methods 1 and 2.
  • Polarity check: helps to verify the correct polarity of the installation.
  • Voc and Isc measurement: enables the measurement of open-circuit voltage and short-circuit current of photovoltaic modules or strings.
  • STC correction: enables performance values to be corrected to standard test conditions.
  • Wireless connectivity: compatible with the optional IRD6010PV module for measuring irradiance and temperature.
  • Memory and data management: stores up to 1,000 readings and allows test certificates to be generated using PC software.
