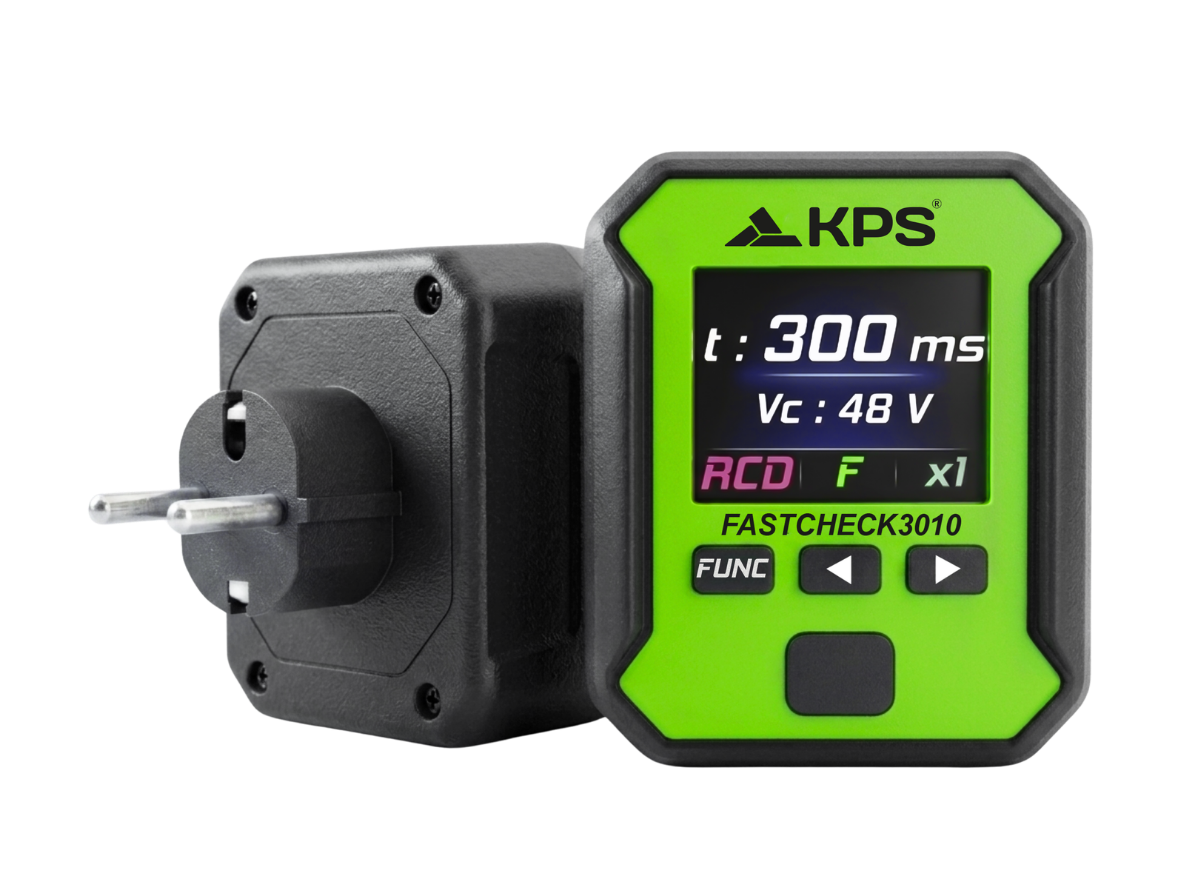

KPS FASTCHECK3010 Multifunction Safety Tester

Introduction

The first multifunction tester in the shape of a socket tester. It allows the test of electrical system according the IEC standard as the common installation tester do. In addition to the TRMS Voltage measurement and the Socket Tester features allow Installation test to be performed from anyone ( RCD, LOOP L-PE ) in according to IEC61557-3 and IEC61557-6. The device allows results to be saved and reports to be generated via the KPS FASTCHECK mobile app.

Now available with a new shape and for bi-phase instalations!

Introduction

The first multifunction tester in the shape of a socket tester. It allows the test of electrical system according the IEC standard as the common installation tester do. In addition to the TRMS Voltage measurement and the Socket Tester features allow Installation test to be performed from anyone ( RCD, LOOP L-PE ) in according to IEC61557-3 and IEC61557-6. The device allows results to be saved and reports to be generated via the KPS FASTCHECK mobile app.

Now available with a new shape and for bi-phase instalations!

Main Features

1. VOLT and Socket Test (Correct wiring of Plug), single and bi-phase system

2. Voltage measurement L-N , TRMS

3. Residual Current (RCD) type A, AC and F also in AUTO mode with CONTACT VOLTAGE measurement

4. Z LOOP (Global earth resistance in TT system and impedance L-Pe in TN with short circuit current)

5. Short circuit current

6. Voltage harmonics up to 49 th

7. THD% (Total harmonics Distortion)

8. Frequency of the fundamental Harmonics and up to 49 th

9. Report generation using KPS FASTCHECK APP (available for Android or iOS)

Function	Range	Resolution	Accuracy
AC Voltage	120 ÷ 265 V	1 V	± (1,0% + 3dgt)
Frequency	42 ÷ 69 Hz	0.1 Hz	± (2,0% + 1dgt)
RCD test	Current	<0.1 I∆n	± (0.0% +5%I∆n)
RCD test	Time	0.1 ms	± (2ms + 2dgt)
Loop Impedance	9.99 Ω	0.01 Ω	± (5,0% + 8dgt)
	99.9 Ω	0.1 Ω	± (5,0% + 8dgt)
	999 Ω	1 Ω	± (5,0% + 8dgt)
Harmonics	0.8 ÷ 256 V	0.1 V	± (3,0% + 5dgt)
